MustHD 7" 1920x1200 Full HD 3G-SDI Field Monitor [4K] for Professional Videographers with HDMI/SDI Input/Output (M702S)

  • $399.00


MustHD M702S is a professional grade field monitor with both 3G-SDI and HDMI inputs and loop-through support. The 7" 1920 x 1200 pixel IPS screen combined with 450 cd/m² (450 nits) brightness and a 1100:1 contrast ratio provide a crisp image clear image. The 178° horizontal and 178° vertical viewing angles make it easy to see even at an angle.

Major Features:

  • 1920 x 1200 7" IPS Panel
  • 3G-SDI, HDMI and Composite inputs
  • 4K Support
  • Luminance of 450cd/m² (450 nits)
  • 3G-SDI/HDMI Loop-through Support
  • Focus Assist / Peaking Color RGB
  • False Color for Under/Over Luminance Warning
  • Histogram and Zebra Pixel-to-Pixel
  • Zoom (from 10-90%)
  • R/G/B/Gray-only display
  • H/V Mirror

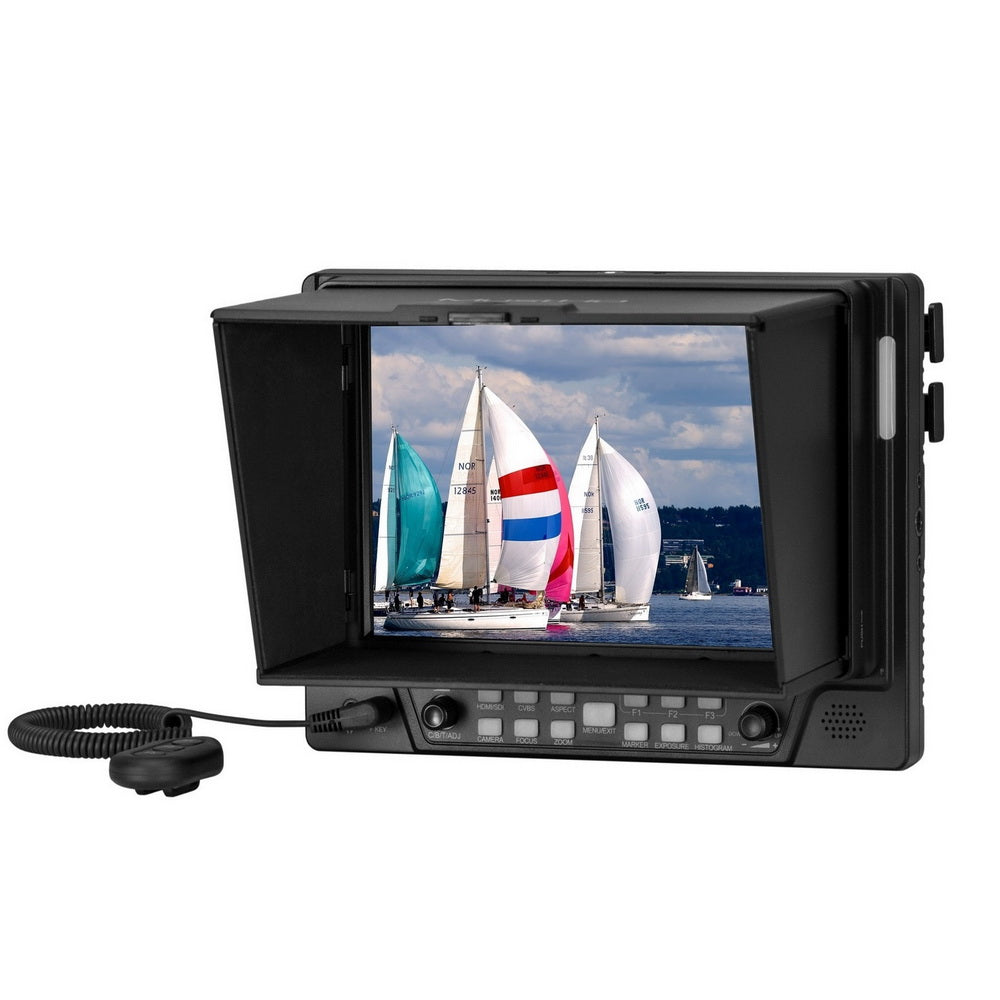

  • 3 Button Programmable Wired Remote
  • Four 1/4”-20 Thread Mounting Holes
  • Speaker & Headphone Output

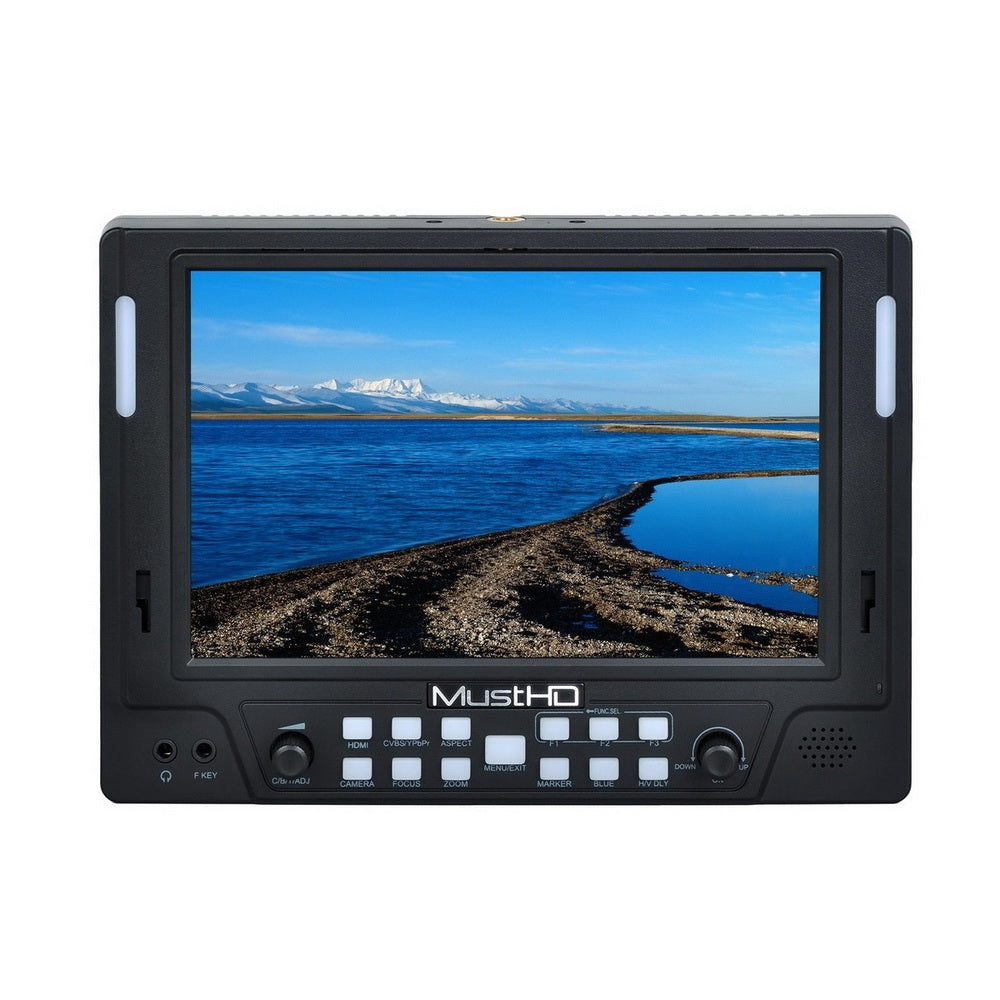

1. Earphone Jack

2. External self-define Wired Remote

3. Contrast/Brightness Adjustment

4. Choose HDMI as input Source

5. Camera Mode

6. Choose Analogue as input

7. Focus Assist

8. Aspect ratio adjustment

9. Zoom

10. Menu/Exit

11. Fit Marker

12. Self-define function Key#1

13. Exposure (Zebra)

14. Self-define function Key#2

15. Histogram

16. Self-define function Key#3

17. Up/Down/Confirm

18. SpeakerFixing screw hole

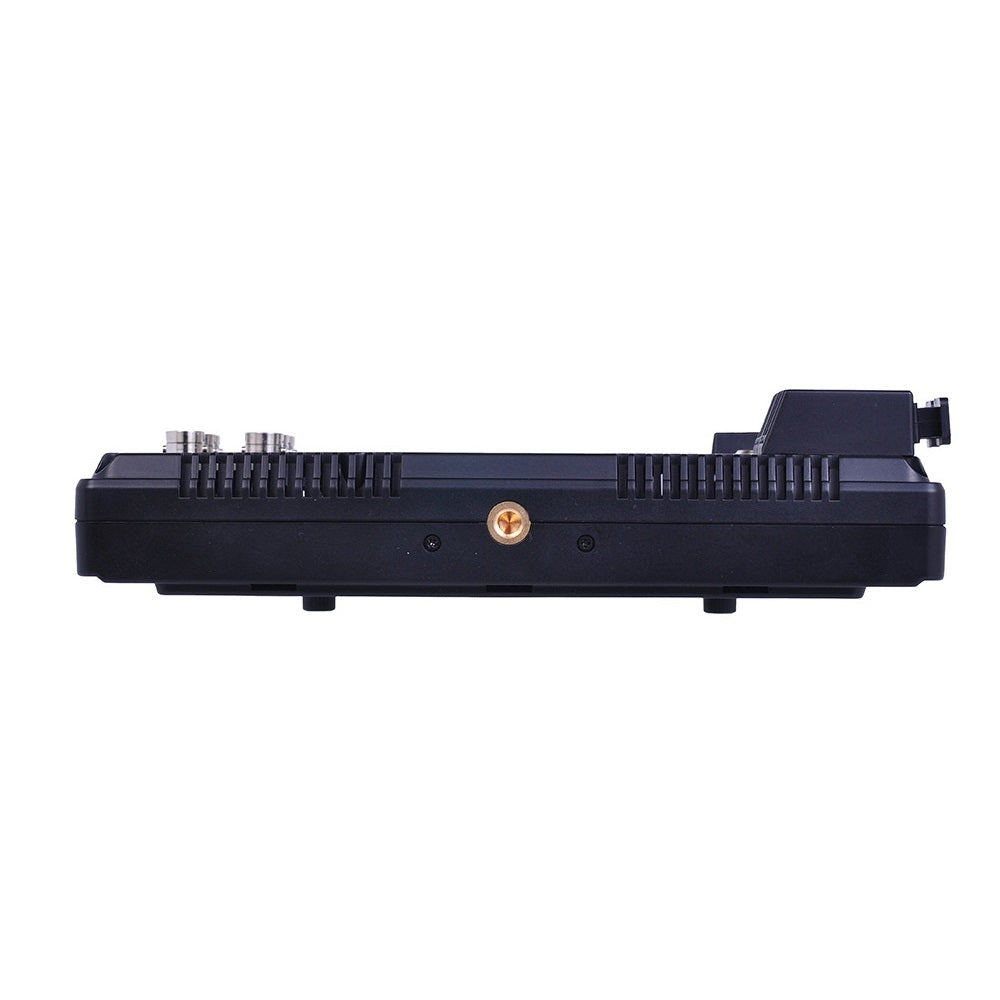

19. 1/4"-20 threaded mounting hole

20. Tally indicator

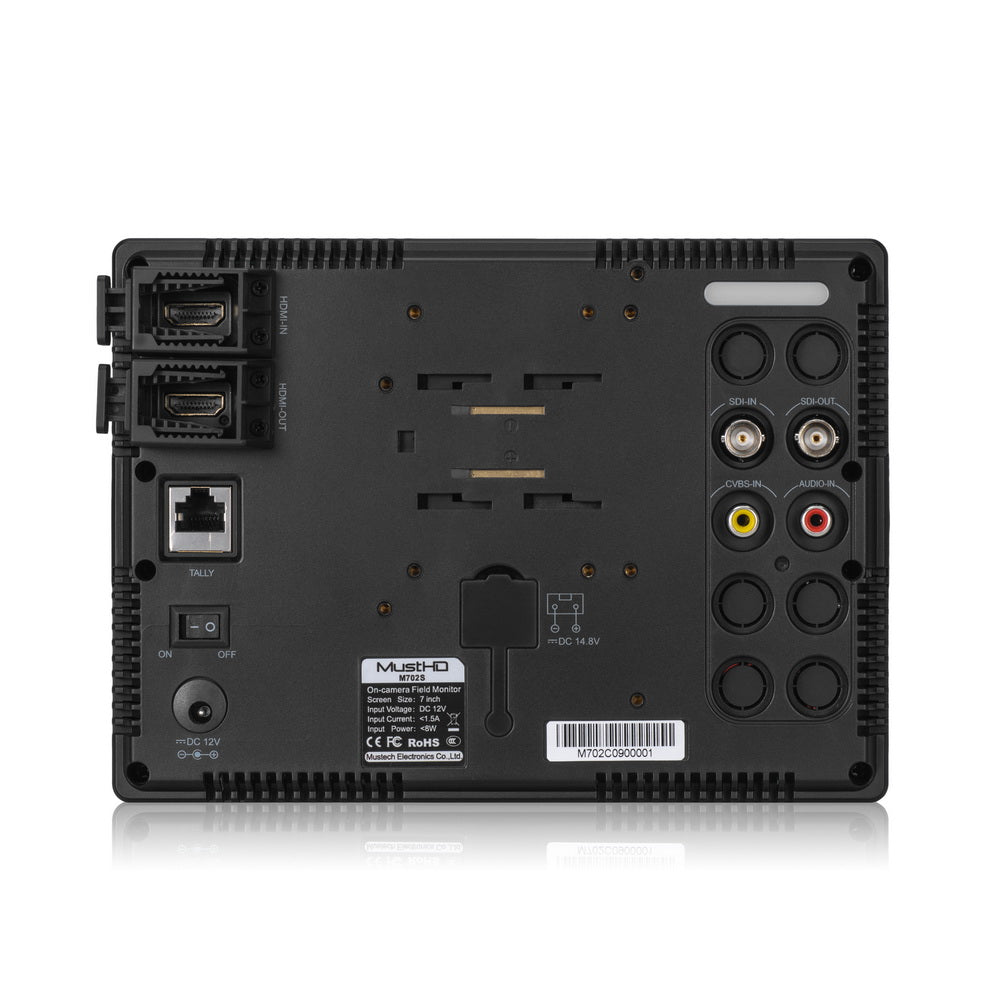

21. HDMI input

22. HDMI output

23. Tally input

24. Power on/off switch

25. DC 12V Power Input

26. DC 14.8V Power Input

27. Battery Plate fixing hole

28. Battery Plate lock grave

29. Tally indicator

30. 3G-SDI Output

31. 3G-SDI Input

32. Audio Input

33. CVBS Input





Specifications:

LCD  Size  7 inches, IPS panel
 Resolution  1920*1200 Native
 Pixel Pitch  0.078(W)x0.078(H)mm
 Viewing Angle  H: 178 degrees ; V: 178 degrees
 Luminance  450 cd/㎡
 Contrast Ratio  1100:1
 Display Area  151.2 (H) x 94.5(W)mm
Input  1x3G-SDI  480i/480p/576i/576p/720p/1080i/1080p/4K
 1xHDMI  480i/480p/576i/576p/720p/1080i/1080p/4K
 1xComposite   CVBS
 1xLAN(RJ45)   TALLY
Output  1x3G-SDI  480i/480p/576i/576p/720p/1080i/1080p/4K
 1xHDMI  480i/480p/576i/576p/720p/1080i/1080p/4K
Audio In  Analog Stereo(phone jack)
 Internal speaker (Mixed Mono)
Power  DC 6-20V
Power Consumption (Approx)  8W
Operating Temperature  0℃to 45℃ (32℉ to 113℉)
Storage Temperature  -20℃to 60℃ (14℉ to 140℉)
Main Body Dimension (mm/inch)  197.5x143.6x50.6 (7.78x5.65x1.99)
Weight  480g
Accessories

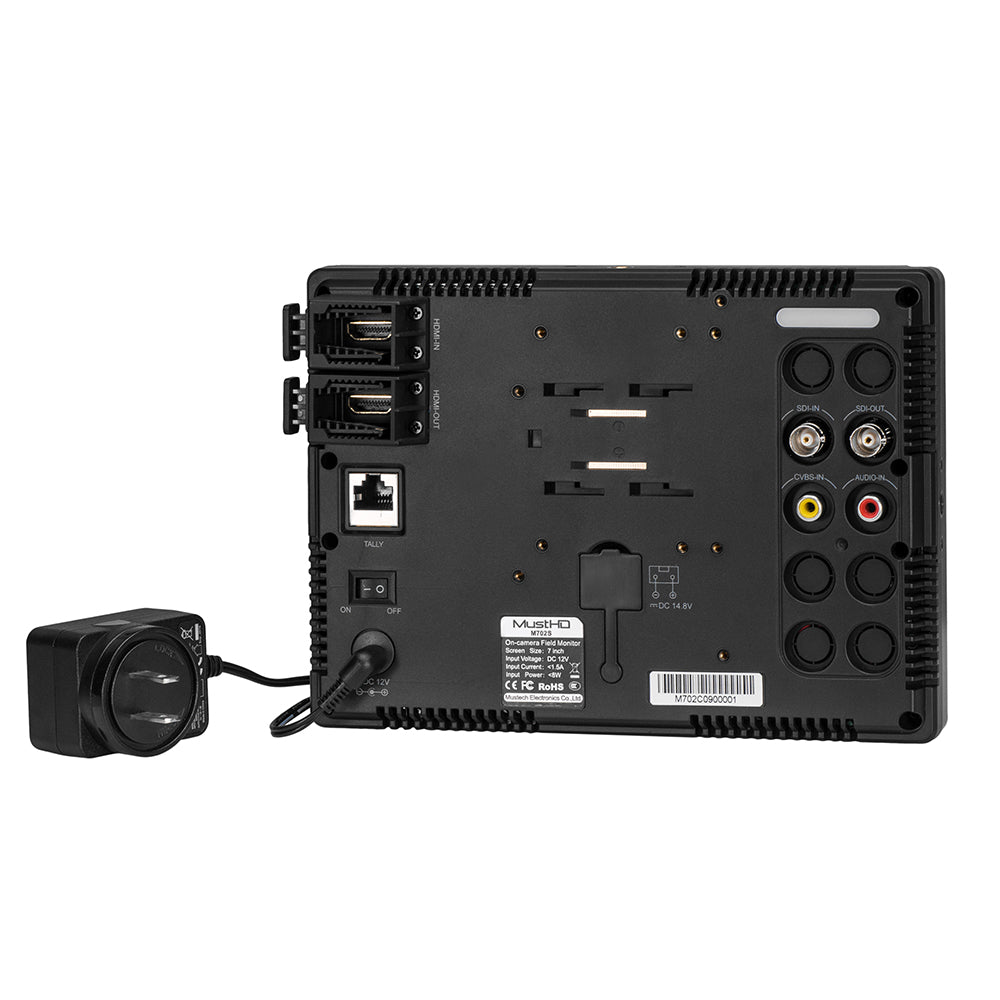

  1. DC Power adaptor (US/EU/UK/AU)
  2. User manual

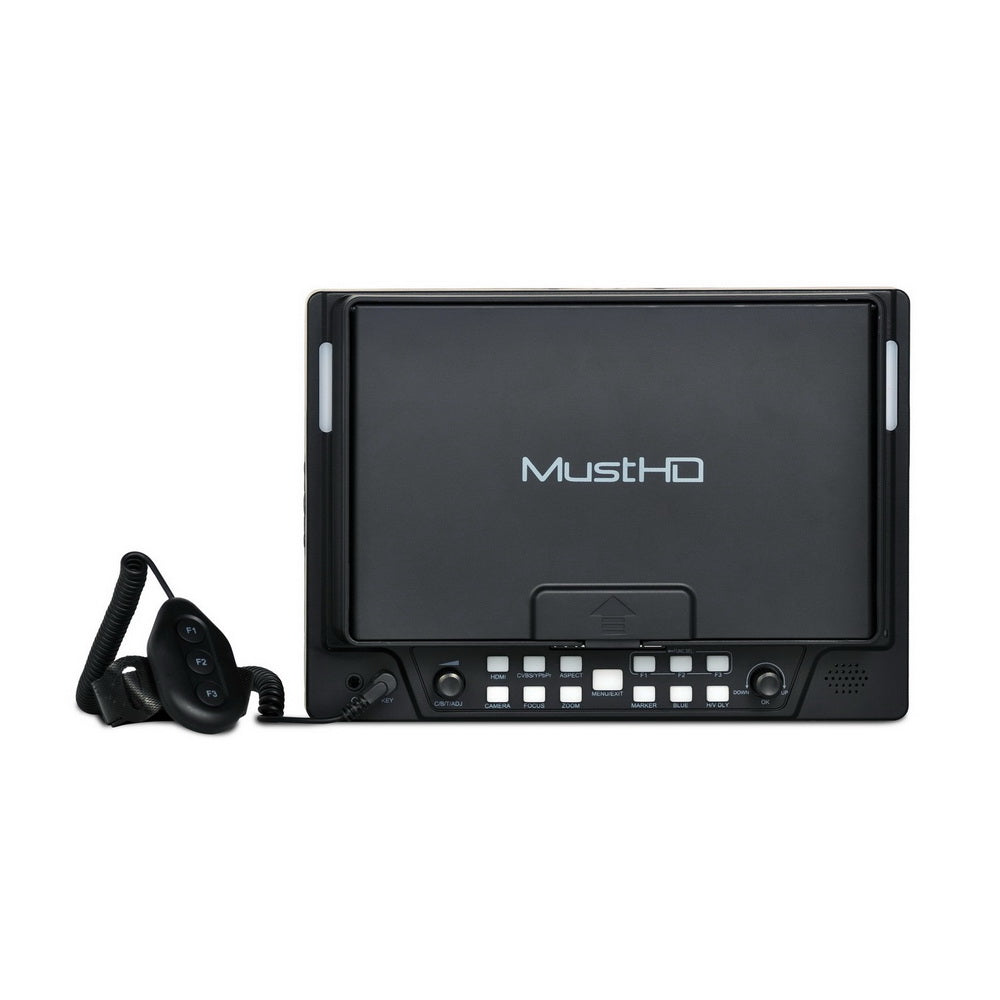

  3. Programmable Wired Remote

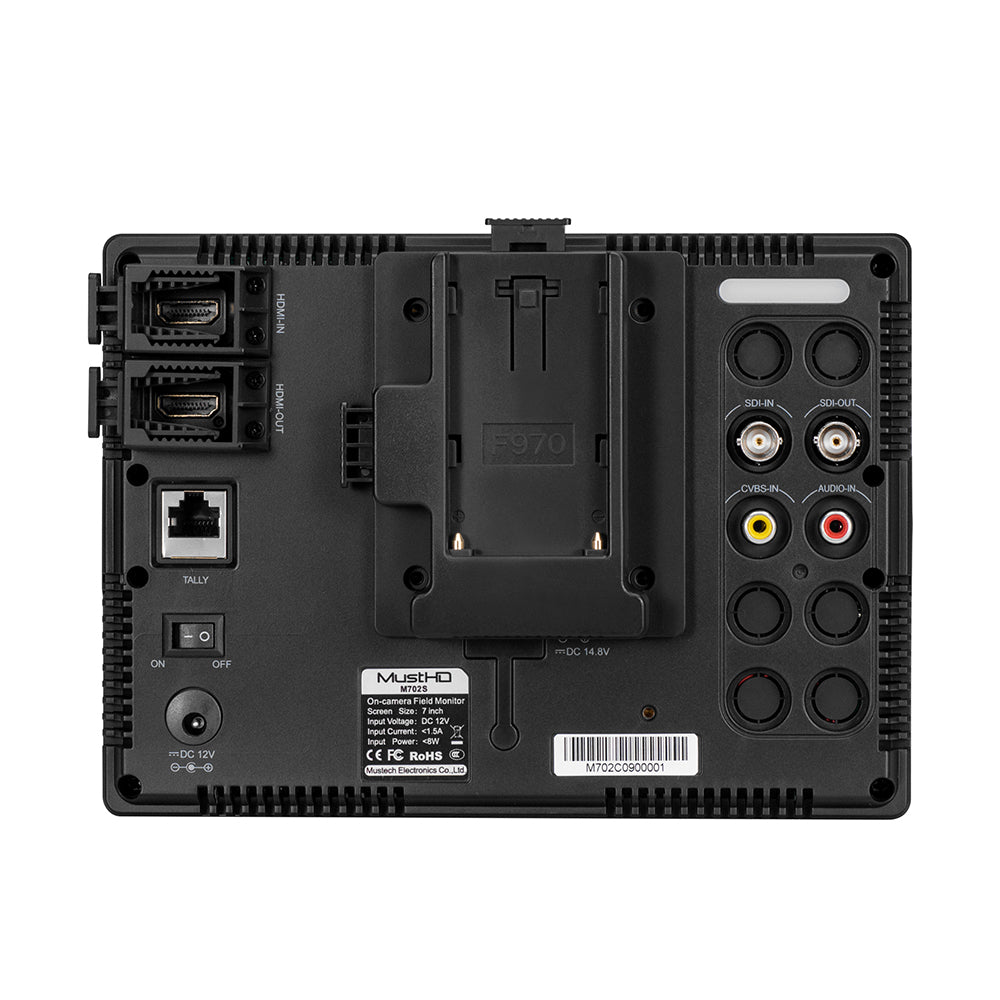

  4. Sony F970 Battery Plate
  5. Screws(for fixing the battery plate tightly)
  6. HDMI cable

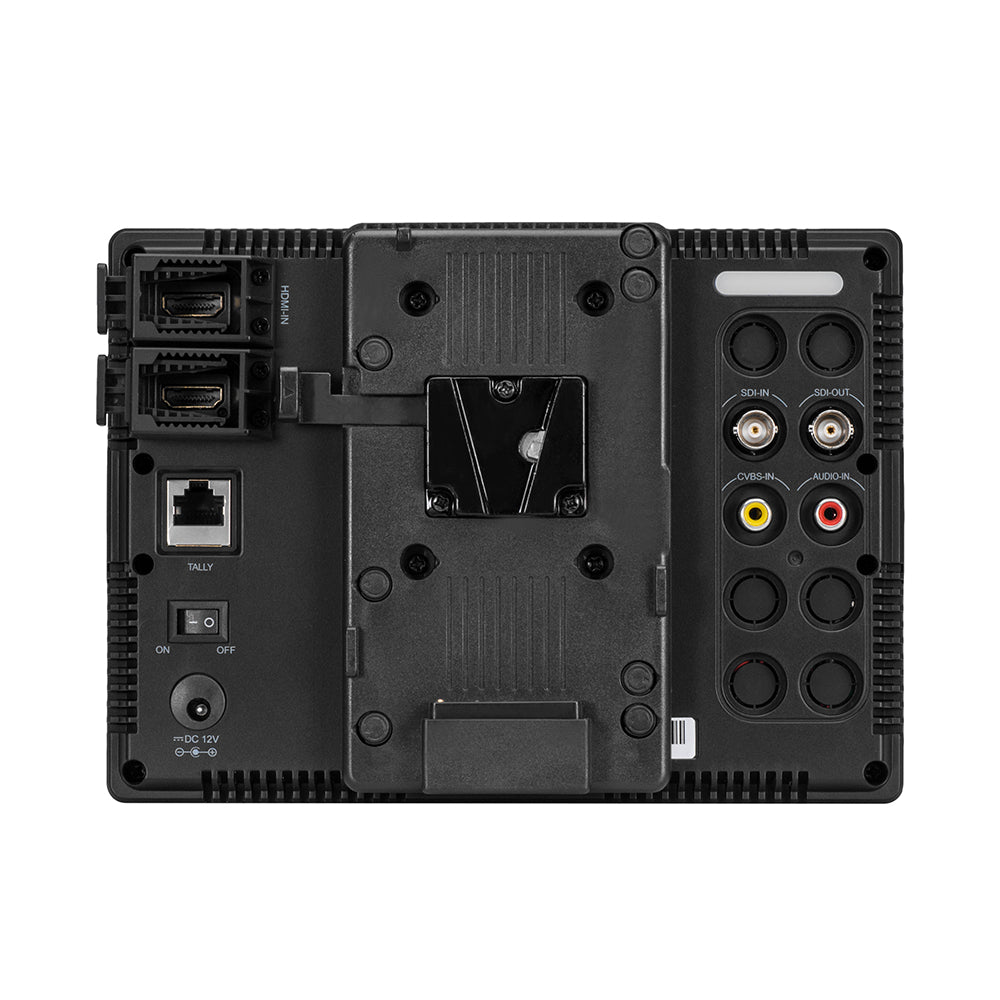

  7. V-mount Battery Plate(optional)
  8. Anton Mount Battery Plate (optional)
  9. Carrying bag(optional)
