MustHD 7" 1920x1200 Full HD HDMI On-camera Field 4K Monitor for Professional Videographers with HDMI Input/Output (M702H)

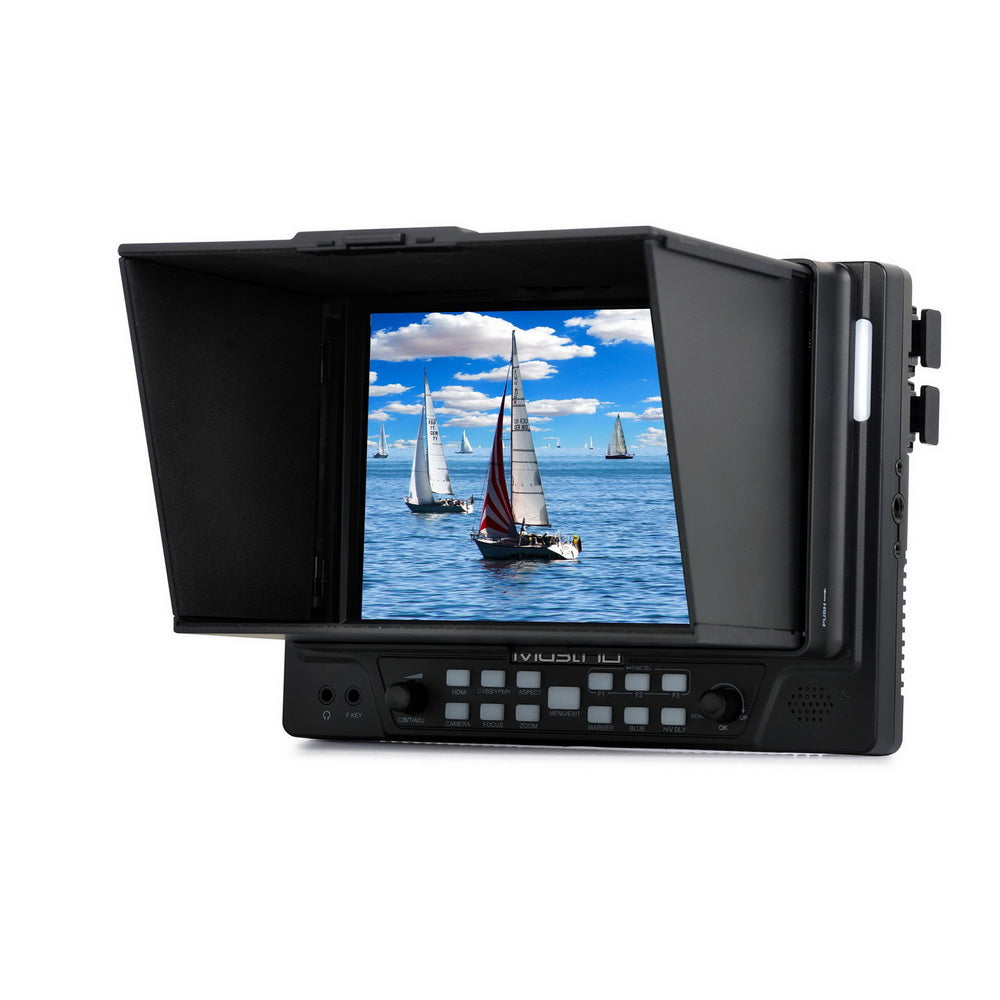

MustHD M702H is a professional grade field monitor with HDMI input and loop-through support. The 7" 1920 x 1200 pixel IPS screen combined with 450 cd/m² (450 nits) brightness and a 1100:1 contrast ratio provide a crisp image clear image with accurate color. The 178° horizontal and 178° vertical viewing angles make it easy to see even at an angle helping to insure accurate video capture.
Major Features:
- 1920 x 1200 FullHD 7" IPS Panel
- HDMI Input/Loop-through, Composite input
- 4K Support
- Luminance of 450cd/m² (450 nits)
- Focus Assist / Peaking Color RGB
- False Color for Under/Over Luminance Warning
- Histogram and Zebr
- Pixel-to-Pixel
- Zoom (from 10-90%)
- R/G/B/Gray-only display
- H/V Mirror

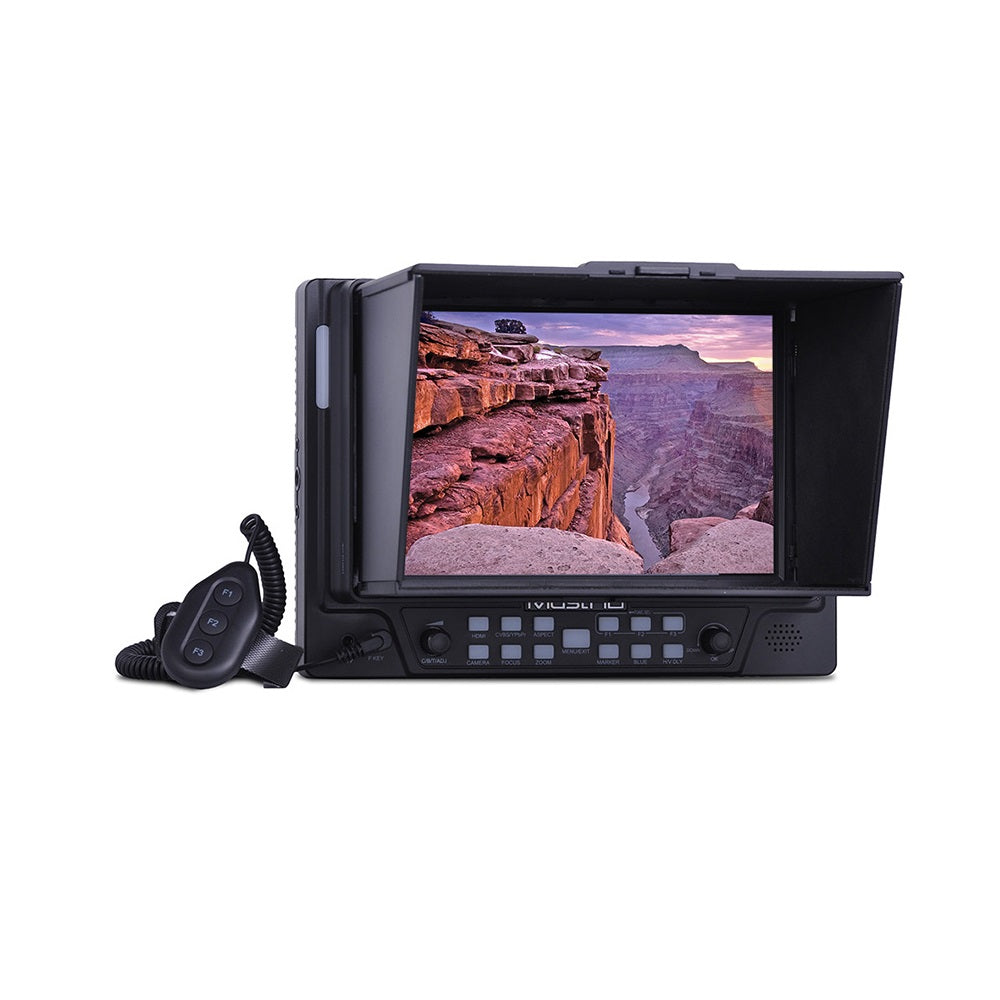

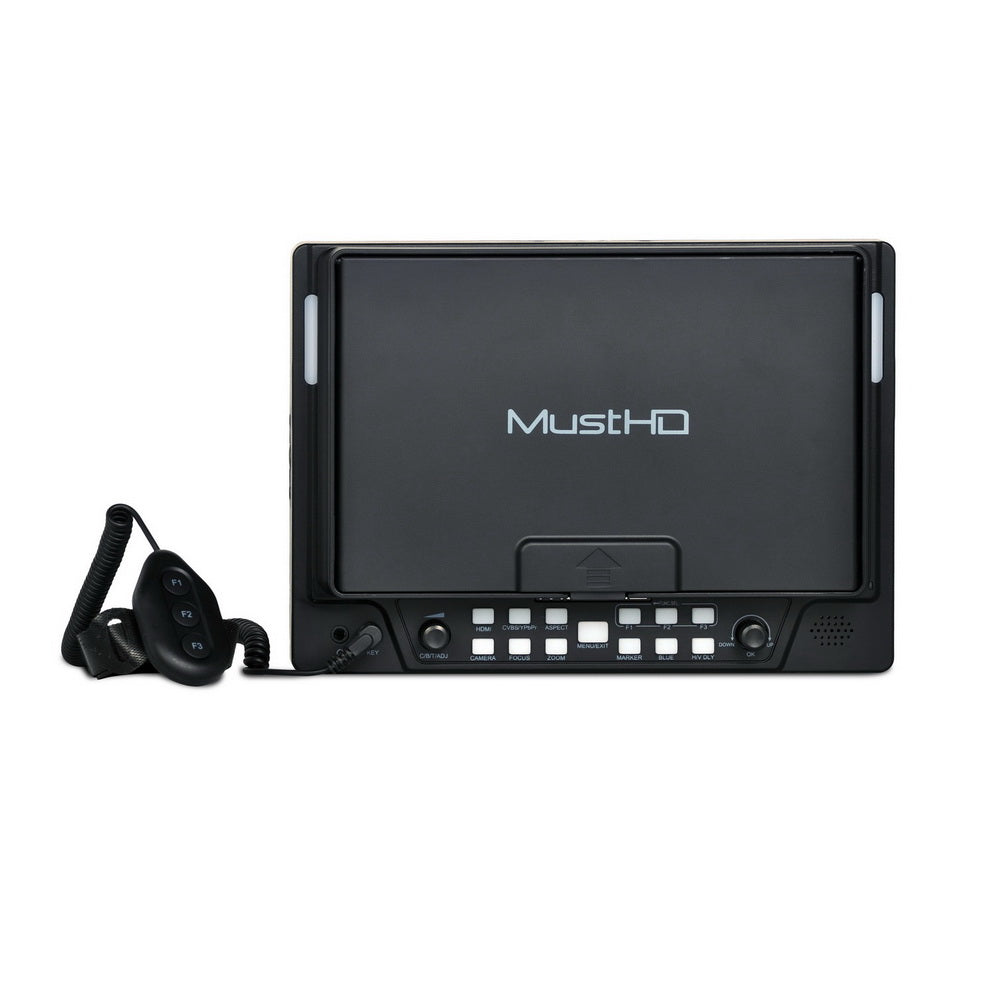

- 3 Button Programmable Wired Remote

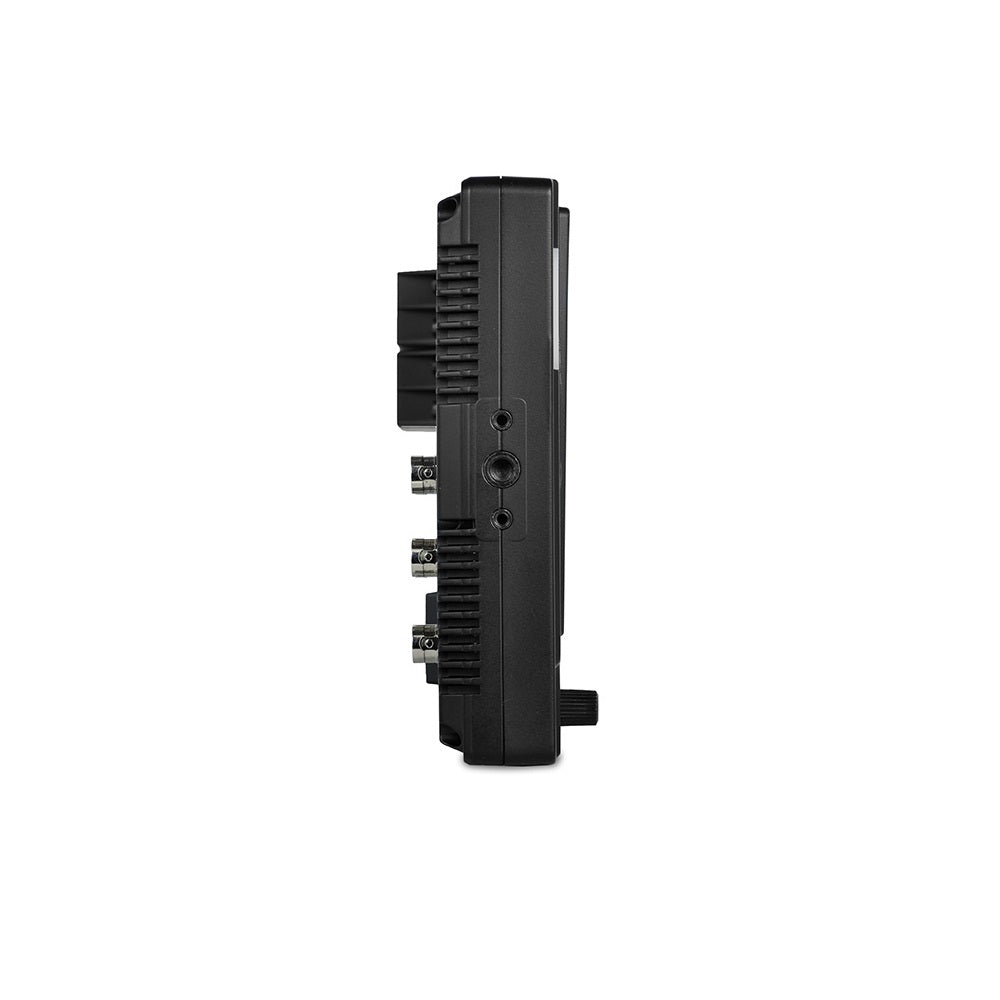

- Four 1/4”-20 Thread Mounting Holes
- Speaker & Headphone Output
- Tally
|

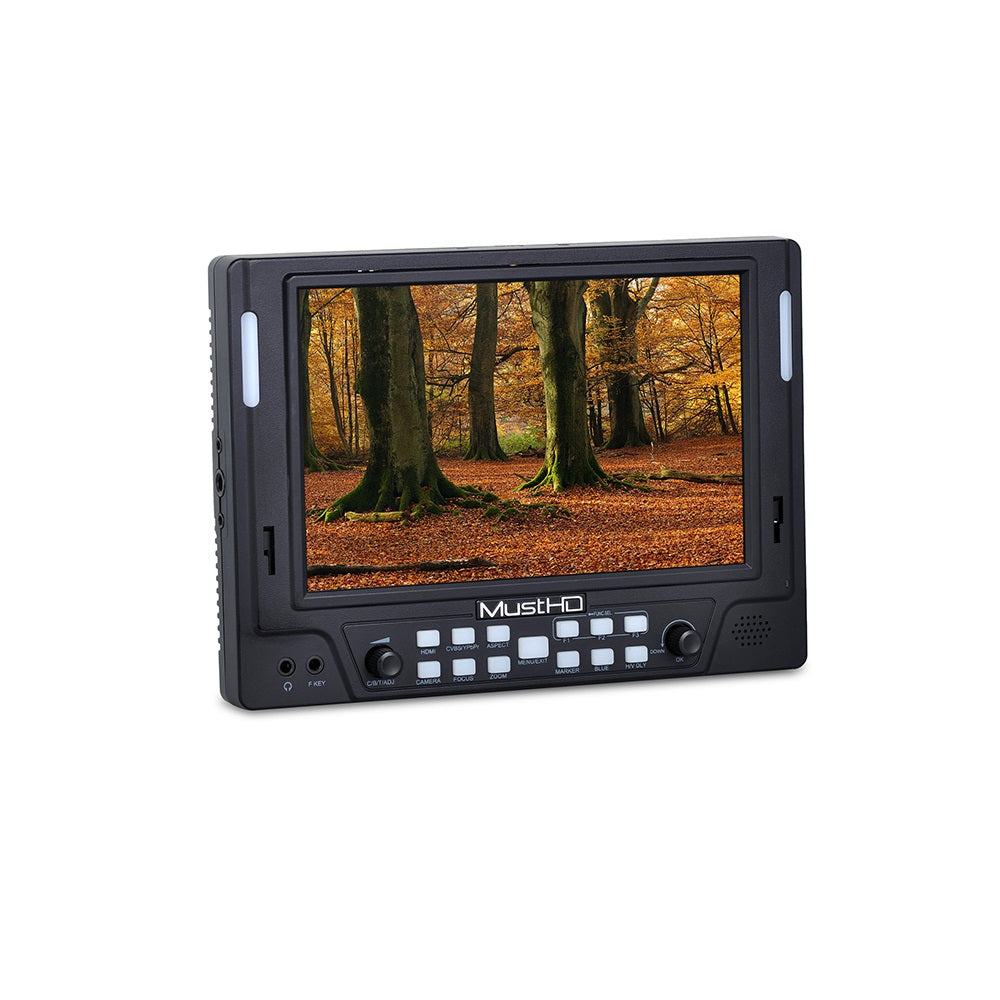

1.Earphone Jack 2.External self-define Wired Remote 3.Contrast/Brightness Adjustment 4.Choose HDMI as input Source 5.Camera Mode 6.Choose Analogue as input 7.Focus Assist 8.Aspect ratio adjustment 9.Zoom 10.Menu/Exit |
11. Fit Marker 12. Self-define function Key#1 13. Exposure (Zebra) 14. Self-define function Key#2 15. Histogram 16. Self-define function Key#3 17. Up/Down/Confirm 18. SpeakerFixing screw hole 19. 1/4"-20 threaded mounting hole 20. Tally indicator |
|

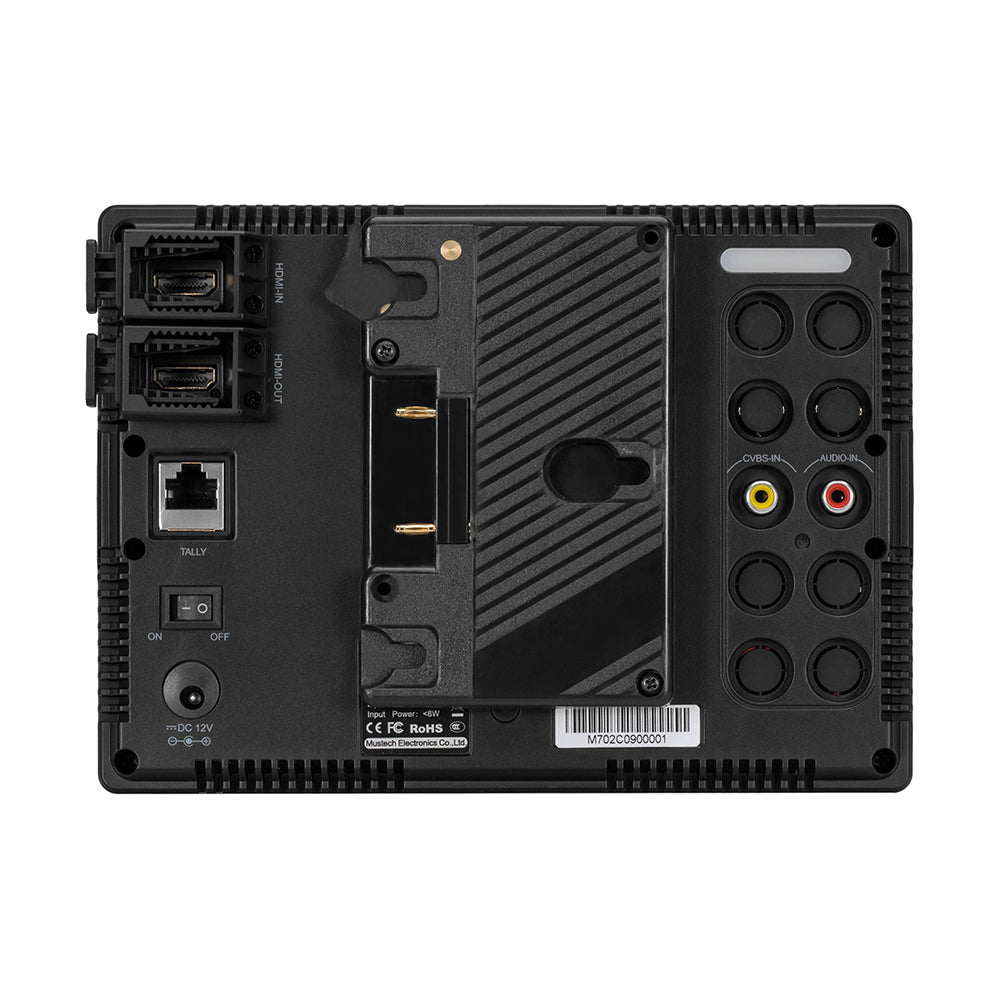

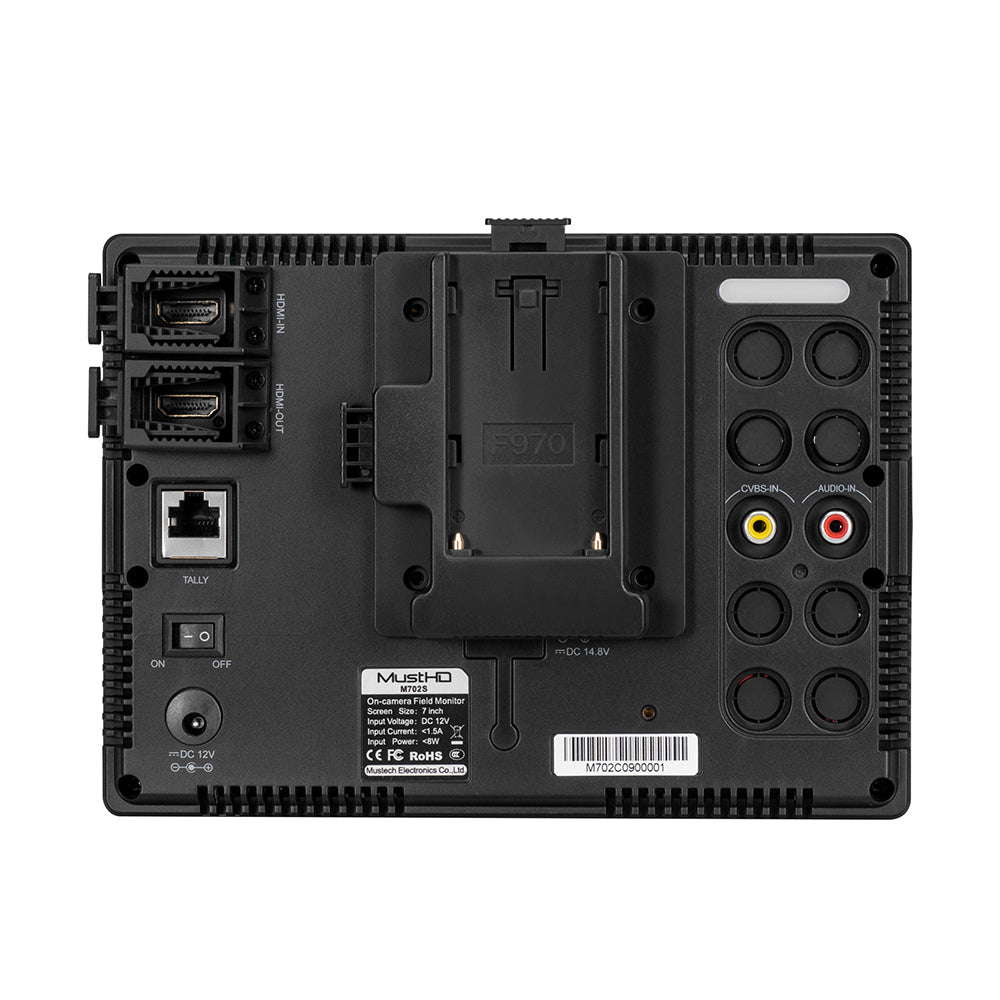

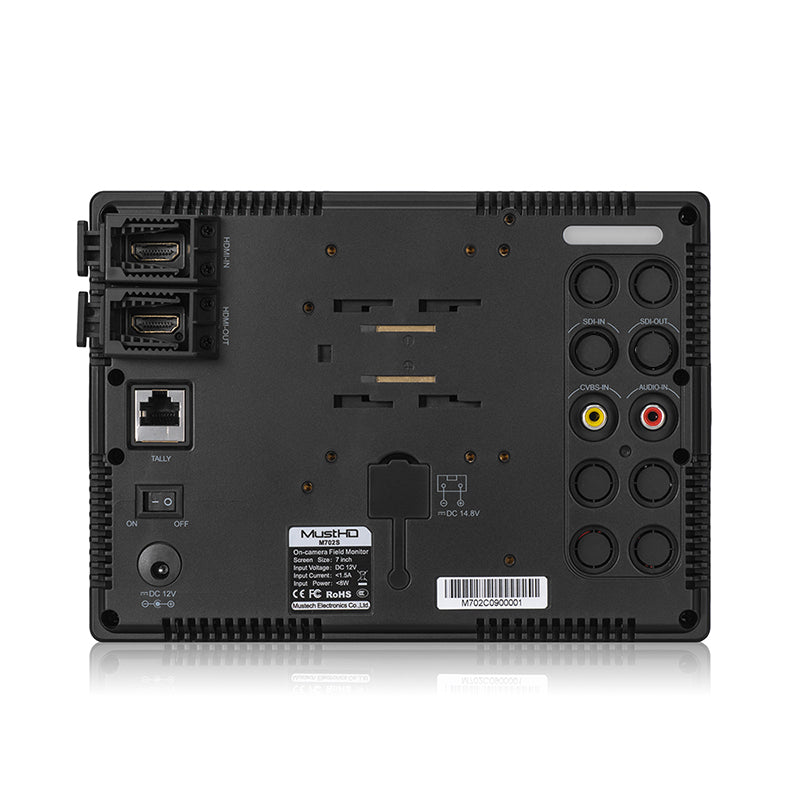

21. HDMI input 22. HDMI output 23. Tally input 24. Power on/off switch 25. DC 12V Power Input 26. DC 14.8V Power Input |
27. Battery Plate fixing hole 28. Battery Plate lock grave 29. Tally indicator 30. Composite(Video) 31. Audio Input |
Specifications:
| LCD | Size | 7 inches, IPS panel |
| Resolution | 1920*1200 Native | |
| Pixel Pitch | 0.078（W）x0.078(H)mm | |
| Viewing Angle | H: 178 degrees ; V: 178 degrees | |
| Luminance | 450 cd/㎡ | |
| Contrast Ratio | 1100:1 | |
| Display Area | 151.2 (H) x 94.5(W)mm | |
| Input | 1xHDMI | 480i/480p/576i/576p/720p/1080i/1080p/4K |
| 1xComposite | CVBS | |
| 1xLAN(RJ45) | TALLY | |
| Output | 1xHDMI | 480i/480p/576i/576p/720p/1080i/1080p/4K |
| Audio In | Analog Stereo(phone jack) Internal speaker (Mixed Mono) |
|
| Power | DC 6-20V | |
| Power Consumption (Approx) | 8W | |
| Operating Temperature | 0℃to 45℃ (32℉ to 113℉) | |
| Storage Temperature | -20℃to 60℃ (14℉ to 140℉) | |
| Main Body Dimension (mm/inch) | 197.5x143.6x50.6 (7.78x5.65x1.99) | |
| Weight | 480g | |
| Accessories |
1. DC Power Adapter (US/EU/UK/AU) 2. User Manual 3. Programmable Wired Remote 4. Sony F970 Battery Plate 5. Screws(for fixing the battery plate tightly) 6. HDMI A to C Type Cable 7. V-mount Battery Plate(optional) 8. Anton Mount Battery Plate (optional) 9. Carrying bag(optional) |
|
