MustHD 7" Hyper-Brite™ 2200-nit High Brightness 1920x1200 Monitor [4K] with 3G-SDI/HDMI Input/Output (M703S)

  • $599.00

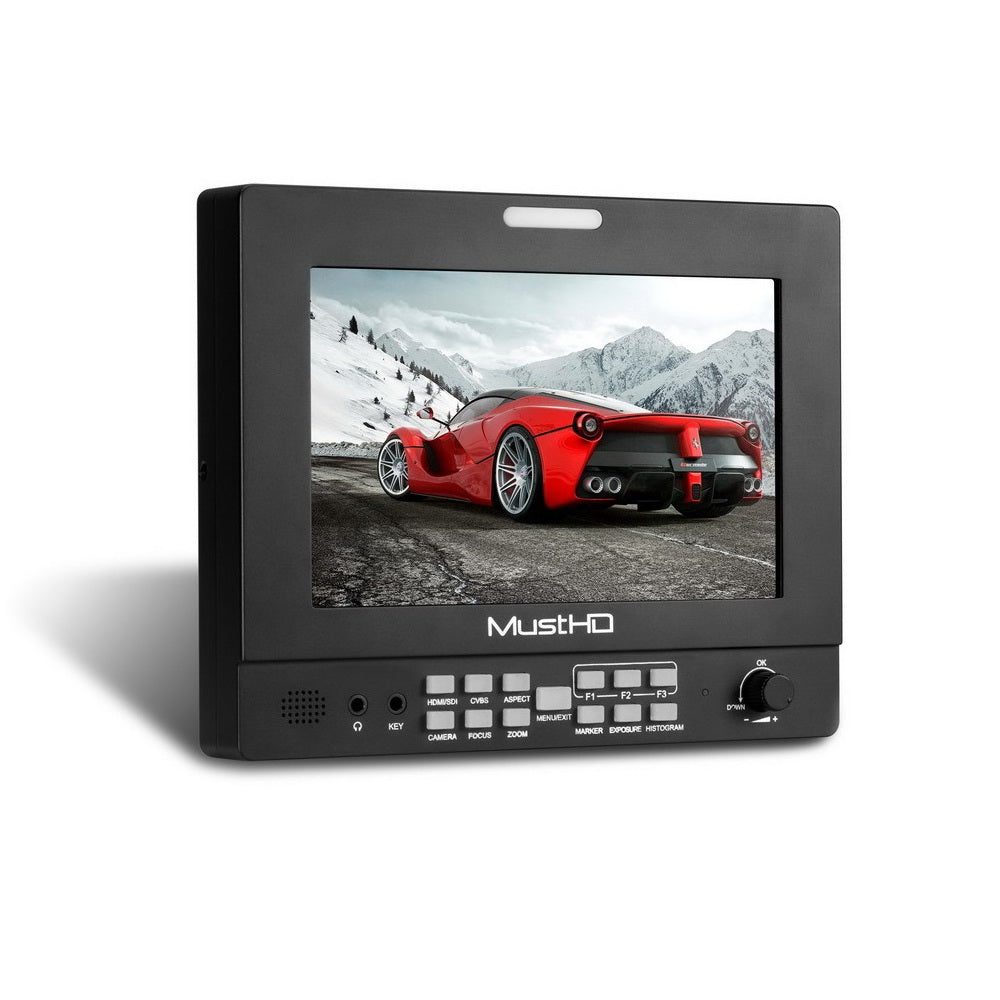

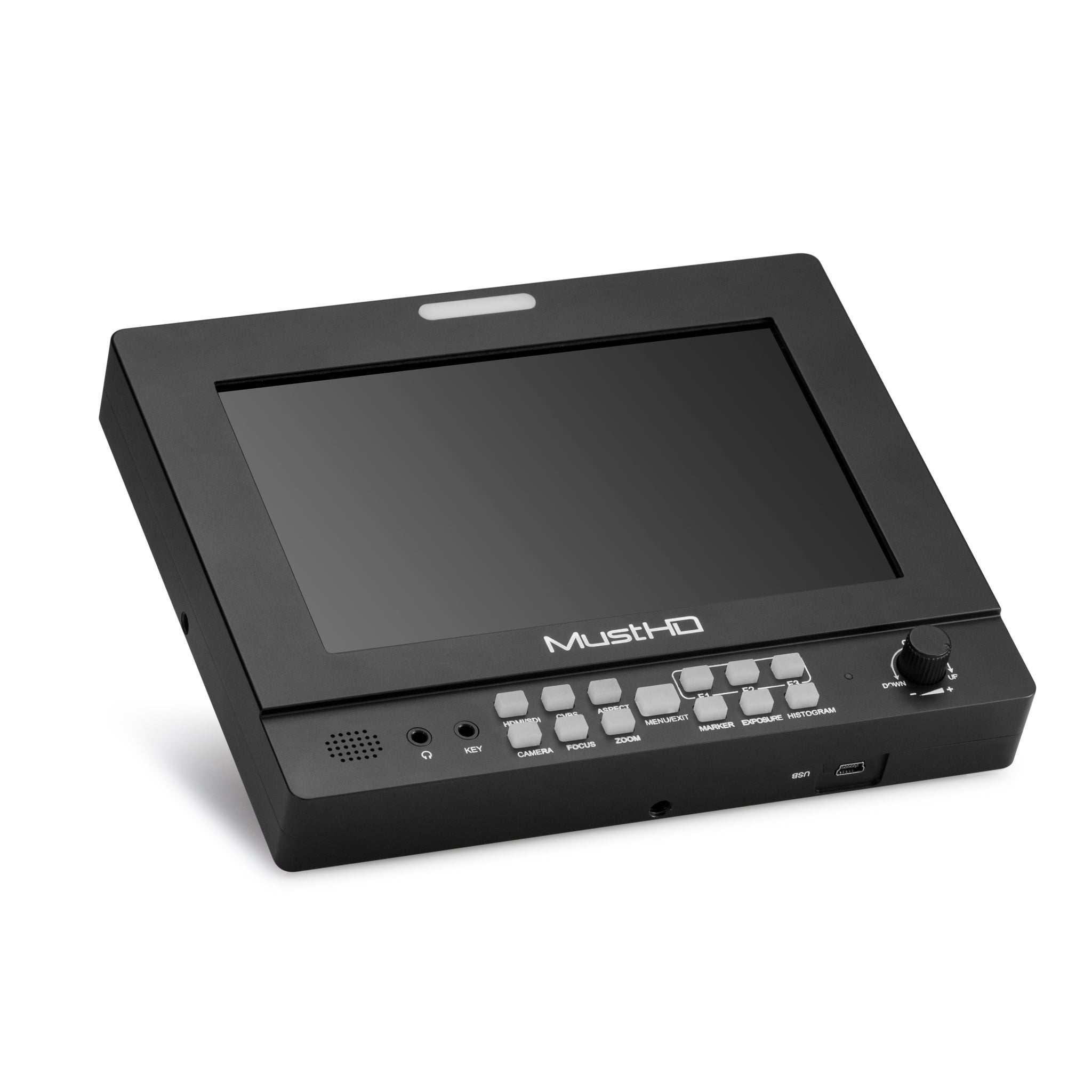

This top-of-the-line, powerful, and affordable 3G-SDI M703S field monitor was designed for the professional cinematographer shooting in the field. The 7" 1920x1200 Hyper-Brite™ IPS panel has an industry-leading LED backlight capable of 2200cd/m² (2,200 nits) output. The brightness of the display enables viewing in sunlight without the need for a sun hood.

Major Features:

  • 1920 x 1200 7" IPS Panel
  • Luminance of 2200cd/m² (2,200 nits)
  • HDMI & Composite inputs
  • 4K/60Hz 3G-SDI/HDMI Input/Loop-through Support
  • 4K Support with support under the 4K
  • Focus Assist / Peaking Color RGB
  • False Color for Under/Over Luminance Warning
  • Histogram and Zebra
  • Pixel-to-Pixel
  • Volume Bar
  • R/G/B/Gray-only display
  • H/V Mirror
  • 3 Button Programmable Wired Remote
  • Four 1/4"-20 Thread Mounting Holes
  • Speaker & Headphone Output
  • Tally

The SDI and HDMI inputs can handle up to a 4K/60Hz signal and the loop-through output enables the use of external recording devices for maximum capture flexibility.

It is constructed with aluminum making it durable and fast cooling. It ensures the monitor's reliability and longevity.

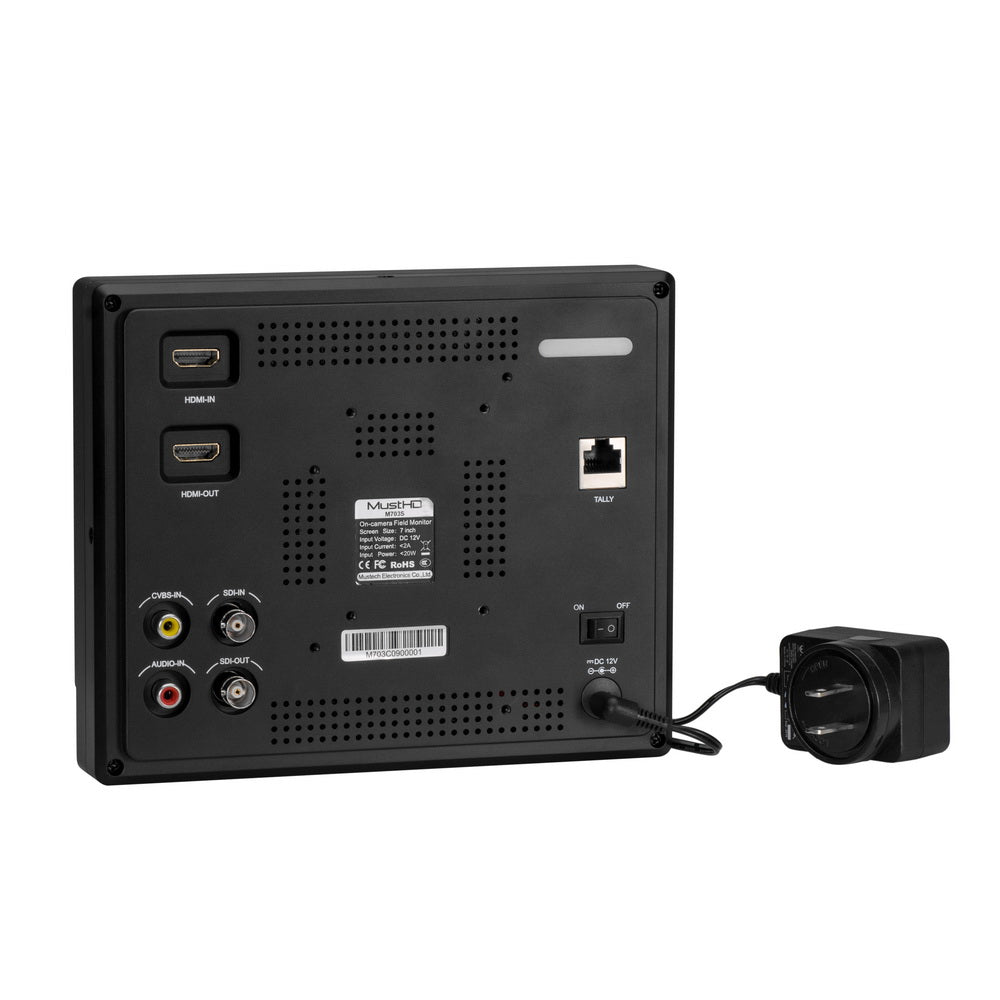

Power Supply

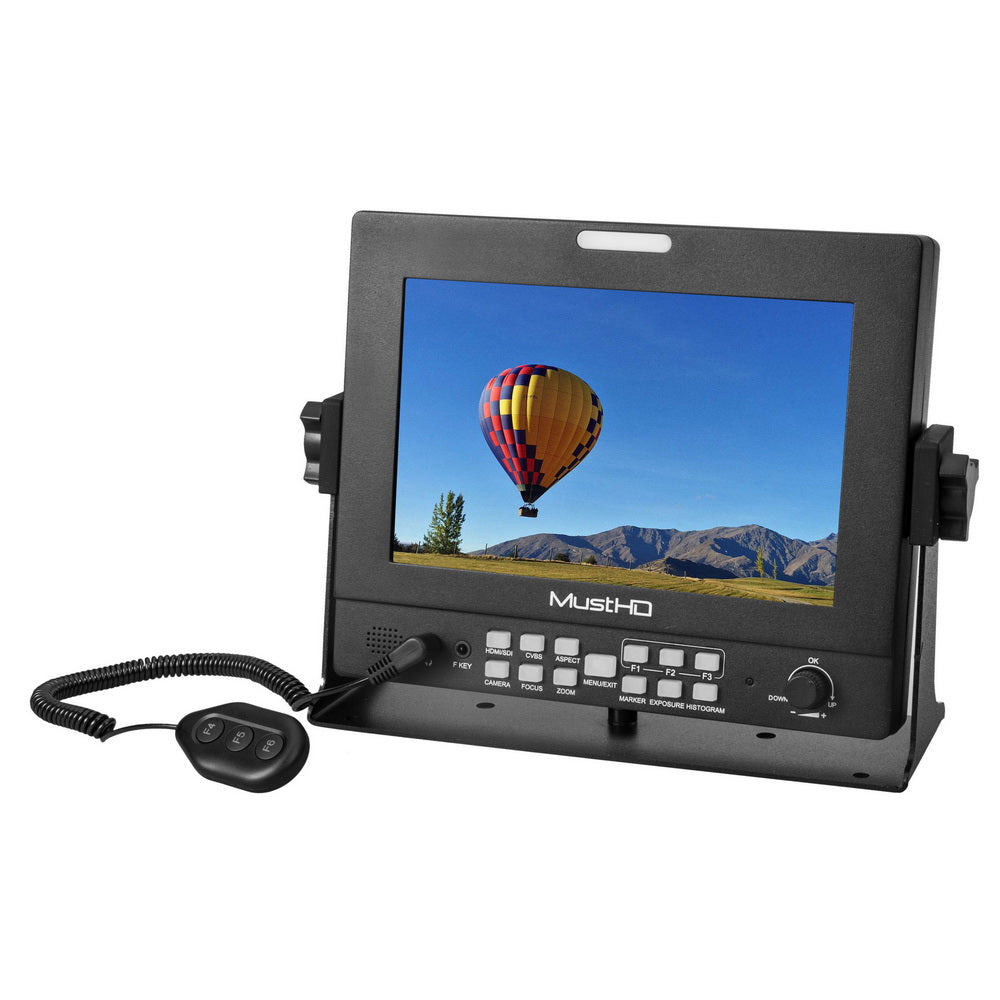

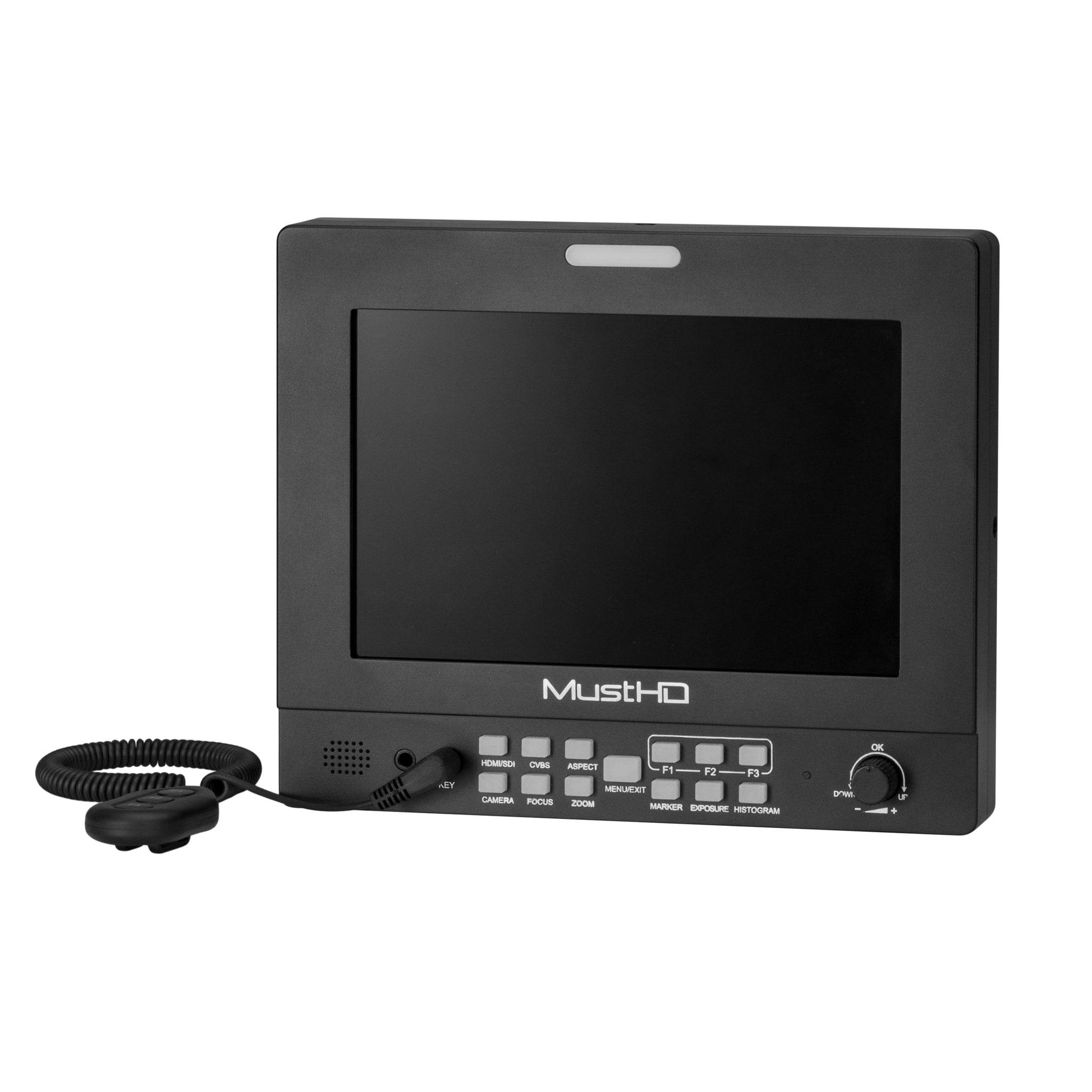

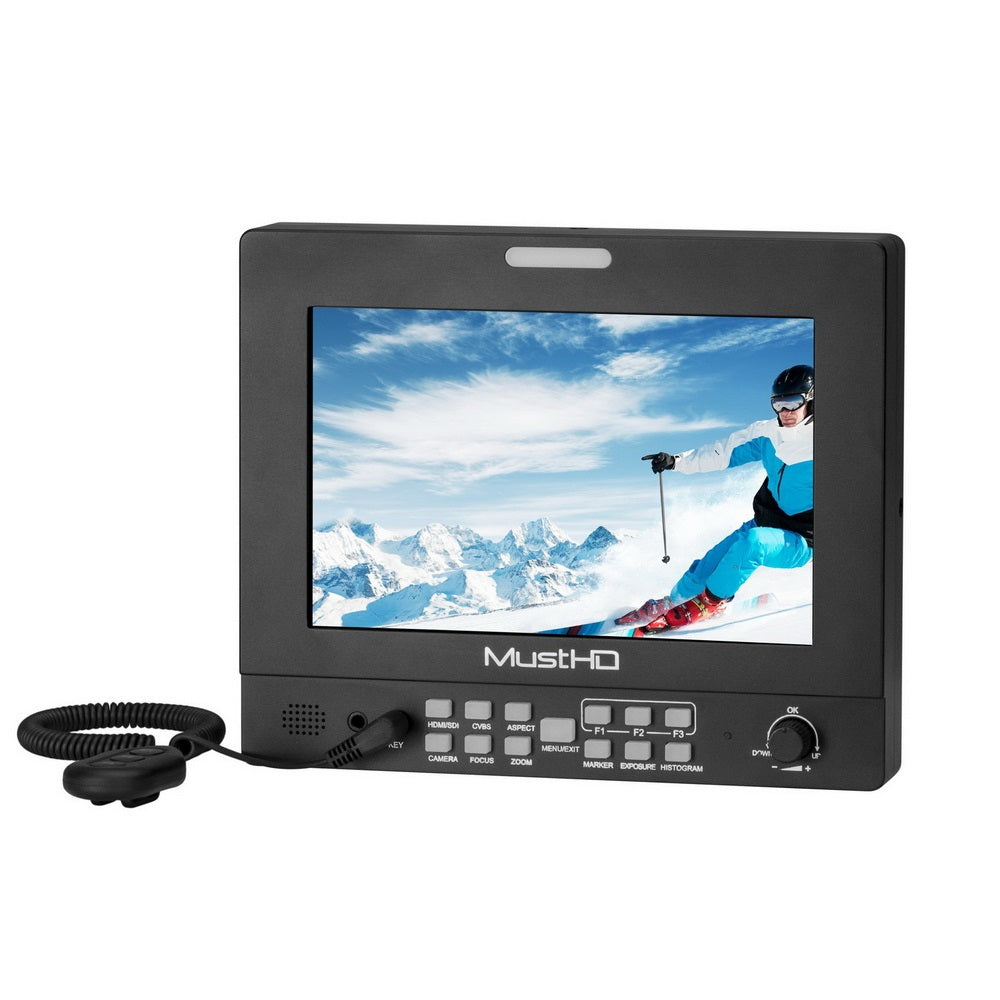

The programmable wired 3 button remote helps make your work easier. Easily set up your most used functions and be able to access them with the push of a single button. A velcro strap allows the remote to be attached to a tripod or frame.



1. Speaker

2. Earphone Jack

3. Wired Remote

4. Choose HDMI/3G-SDI as input Source

5. Camera Mode

6. Choose Analogue as input Source

7. Focus Assist

8. Aspect Ratio

9. Zoom

10. Menu/Exit

11. Fit Marker

12. Self-define function Key#1

13. Exposure

14. Self-define function Key#2

15. Histogram

16. Self-define function Key#3

17. Knob(Up/Down/Confirm)

18. 1/4"-20 mounting hole

19. Tally indicator







20. HDMI input

21. HDMI output

22. 3G-SDI Input

23. CVBS Input

24. Audio Input

25. 3G-SDI Output

26. Tally indicator

27. Battery plate fixing hole

28. Tally Power Input

29. Power On/Off

30. DC 12V Power Input



Specifications:

LCD  Size  7 inches, IPS panel
 Resolution  1920*1200 Native
 Pixel Pitch  0.078(W)x0.078(H)mm
 Viewing Angle  H: 178 degrees ; V: 178 degrees
 Luminance  2200 cd/㎡
 Contrast Ratio  1200:1
 Display Area  151.2 (H) x 94.5(W)mm
Input  1x3G-SDI  480i/480p/576i/576p/720p/1080i/1080p/4K/60Hz
 1xHDMI  480i/480p/576i/576p/720p/1080i/1080p/4K/60Hz
 1xComposite   CVBS
 1xLAN(RJ45)   TALLY
Output  1x3G-SDI  480i/480p/576i/576p/720p/1080i/1080p/4K/60Hz
 1xHDMI  480i/480p/576i/576p/720p/1080i/1080p/4K/60Hz
Audio In/Out  Analog Stereo(phone jack)
 Internal speaker (Mixed Mono)
Power  DC 12-20V
Power Consumption (Approx)  < 20W
Operating Temperature  0℃to 45℃ (32℉ to 113℉)
Storage Temperature  -20℃to 60℃ (14℉ to 140℉)
Main Body Dimension (mm/inch)  194x160x35.5 (7.6x6.3x1.4)
Weight  840g
Accessories
 1. DC Power adaptor (US/EU/UK/AU)
 2. User manual
 3. Programmable Wired Remote
 4. Screws(for fixing the battery plate more tightly)
 5. HDMI cable

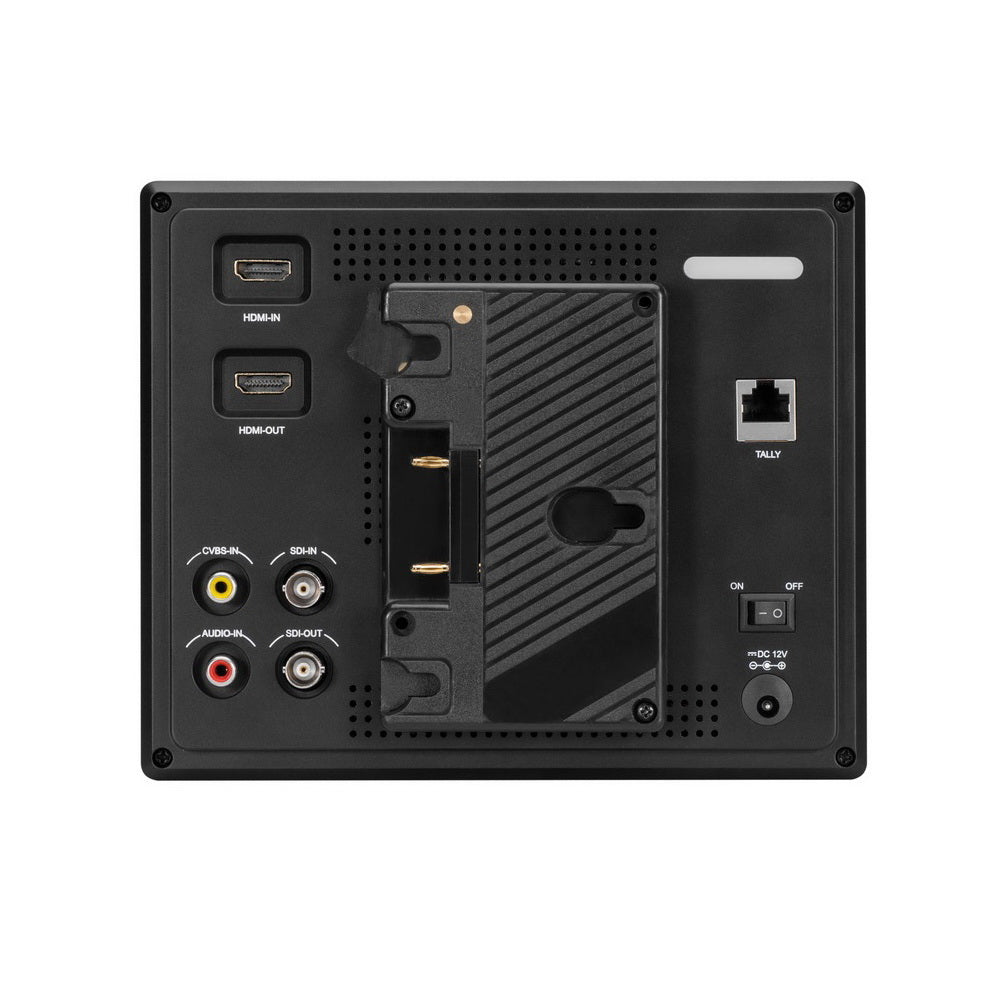

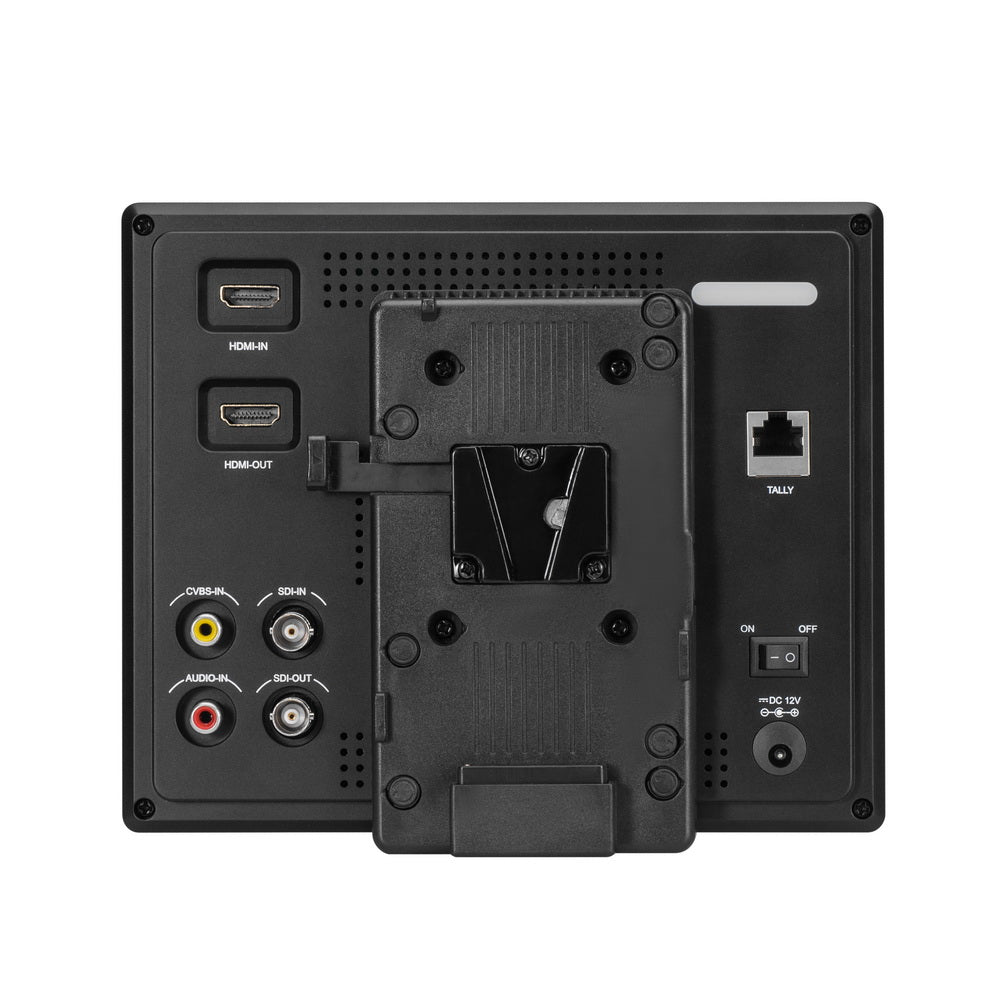

 6. V-mount Battery Plate(optional)
 7. Anton Mount Battery Plate (optional)
 8. Carrying bag(optional)
